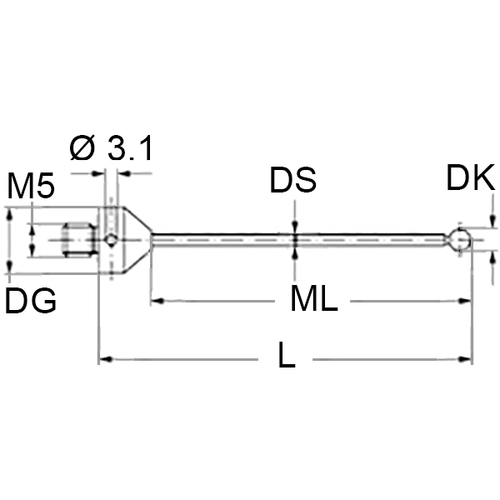

Renishaw M5 Stylus, M5 Ø3.0 mm Ruby Ball, TC Stem, L 58 mm, ML 48.0 mm for ZEISS Application [A-5555-0021]

Product Description

Renishaw M5 Stylus, M5 Ø3.0 mm Ruby Ball, TC Stem, L 58 mm, ML 48.0 mm for ZEISS Application [A-5555-0021]

Product Details

This precision ball stylus is designed for ZEISS coordinate measuring machine (CMM) applications, providing accurate and repeatable probing performance for a wide range of dimensional inspection tasks. The Ø3.0 mm ruby ball offers exceptional hardness, wear resistance, and dimensional stability, making it suitable for high-precision measurement applications.

The tungsten carbide (TC) stem provides excellent rigidity and strength, helping to minimize deflection during probing and maintain measurement accuracy. The combination of a ruby ball and TC stem delivers reliable performance in demanding metrology environments.

With an overall length of 58 mm and an effective working length (EWL) of 48 mm, this stylus offers extended reach while maintaining stability, making it suitable for accessing deeper or more complex features during inspection.

Specifications

Thread Type: M5

Component Type: Ball Stylus

Application Compatibility: ZEISS CMM Systems

Ball Material: Ruby

Ball Diameter: Ø3.0 mm

Stem Material: Tungsten Carbide (TC)

Overall Length (L): 58 mm

Module Length (ML): 48.0 mm

Part Number: A-5555-0021

Zeiss Order number: 600342-8021
