Renishaw RTP20 Rack Kit

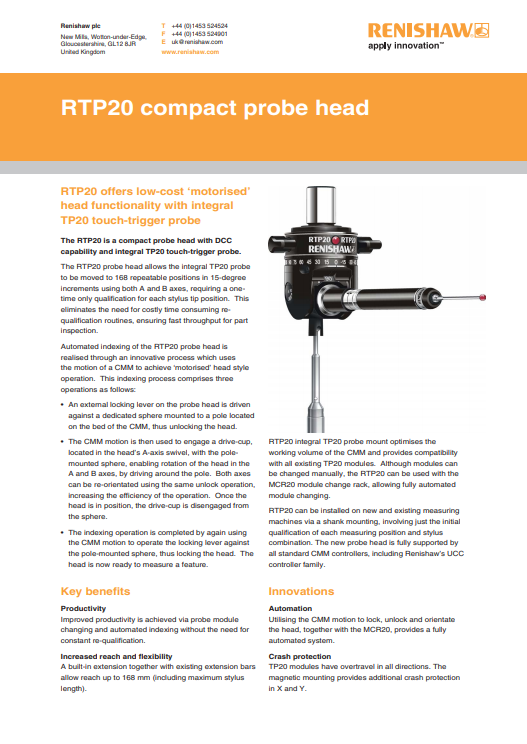

Renishaw's RTP20 compact head for DCC coordinate measuring machines (CMMs) offers low-cost 'motorized' head functionality and integral TP20 touch-trigger probe.
The new RTP probe head allows the integral probe to be moved to 168 repeatable positions and 15 degree increments using both A and B axes, allowing a one-time qualification for a stylus tip position. This eliminates the need for costly time-consuming requalification routines, ensuring fast throughput for part inspection. Users can therefore easily access features to be measured and optimize system performance by ensuring the probe is applied to the surface at the best angle to achieve accurate measurements.
(Additional charge for 6-way module $78 per module)
The RTP20 Rack Kit includes:
RTP20 head
Shank(various types)
Pole
Pole adaptor (various types)
MCR20 Rack
1 x TP20 Modules(standard, medium,extended, or low)
2 x M2 stylus spanners
2 x M4 stylus spanners
Cleaning kit
The complete part number is A-5400-xxxx with the first 2 digits being the number of the two force modules and the last 2 digits are the number of the shank required.
PLUS an extra 2 digits for the pole adaptor required:
+0 = M8 pole adaptor
+20 = M6 pole adaptor
+40 = 5/16 pole adaptor
+60 = 3/8 pole adaptor
+80 = M10 pole adaptor
| Probe mounting | TP20 kinetic mount |
| Head mounting | MS range of shanks |
| Suitable interfaces | PI4-2, PI200-3 or PI7-3 |
| Number of probe sockets | 1 |
| Probe status indication | 1 LED |
| Cable connection | 5 pin DIN 180° socket |
| A-axis indexing | 0° to 90° in 15° repeatable steps |
| B-axis indexing | 180° in 15° repeatable steps |
| Repeatability of position | 1.5 μm (0.00006 in) with TP20 and 10 mm stylus 2.5 μm (0.0001 in) with EM2 extension module and 10 mm stylus |
| Maximum extension bar | EM2 extension module - 75 mm (2.95 in) |
Part Number: A-5400-xxxx
