Product Description
The TCR20 probe module changing rack is designed specifically for PH20 and features a tip correct artefact located at the centre of the rack assembly for PH20 metrology optimisation. It securely stores up to six TP20 probe modules for automatic changing and protects them from airborne contaminants. The TCR20 is easily mounted onto any CMM. Setting the TCR20 rack alignment and probe module changing co-ordinates requires minimal effort.

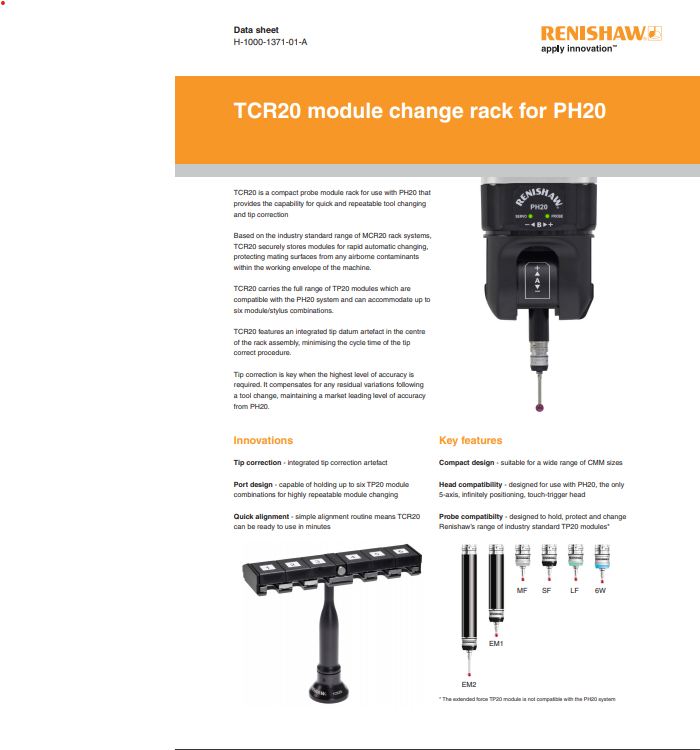

TCR20 is a compact probe module rack for use with PH20 that provides the capability for quick and repeatable tool changing and tip correction.
Based on the industry standard range of MCR20 rack systems, TCR20 securely stores modules for rapid automatic changing, protecting mating surfaces from any airborne contaminants within the working envelope of the machine.
TCR20 carries the full range of TP20 modules for use with a PH20 system and can accommodate a range of module and stylus combinations.
TCR20 features an integrated tip datum artefact in the centre of the rack assembly, reducing cycle time when measuring and performing the tip correct procedure.
Tip correction is key when the absolute highest level of accuracy is required for certain applications. It compensates for any residual variations after a tool change, maintaining a market leading level of accuracy from PH20.
TCR20 alignment and change routine
The following routines are handled through UCCserver for TCR20:
- Alignment routine
- Put down and pick up routine
- Safe position
| Width | 200 mm (7.87 in) |
| Depth | 57 mm (2.24 in) |
| Base diameter | 50 mm (1.97 in) |
| Port entry velocity | Maximum 800 mm/s |
| Mounting orientation | Ports in horizontal position only |
| Tip correct artefact | Centre of rack assembly |
| Overtravel | None - overtravel in PH20 head |
| Inhibit range | None - provided by UCC controller |
