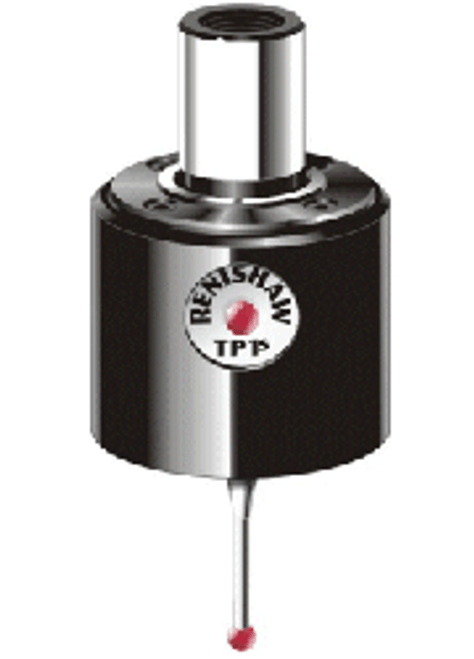

Product Description A reliable probe which is especially suited for manual CMMs. It is available in two versions with differing plug socket orientations: TP1S: cable connects vertically TP1SM: cable connects horizontally The TP1S is a robust shank-mounted probe offering generous overtravel, ideally suited to manual CMMs. TP2 5-way - A compact probe allowing component penetration, ideally suited to CNC/DCC machines. TP6 - Complementing the TP2 series, but carrying longer and heavier styli, this probe is suited to general purpose applications. TP6A - This probe has all the functions of the TP6 probe and in addition the patented Renishaw autojoint that permits fast probe exchange without the need to requalify. Sense directions ±X, ±Y, +Z 2σ unidirectional repeatability 0.5 µm Pre-travel variation ±2.0µm Stylus force range 10 g to 50 g Stylus overtravel XY plane: ±19.5° +Z axis: 8.5 mm @ 15 g; 5.0 mm @ 50 g Suitable interfaces PI4-2, PI7-3, or PI200-3 Stylus thread size M3 Mounting option Shank to suit your CMM Test conditions 31 mm stylus @ 8 mm/s with trigger force of 15 g Renishaw Part number: A-1041-7540 Resources Renishaw Touch Trigger Probe Systems Manual Download
