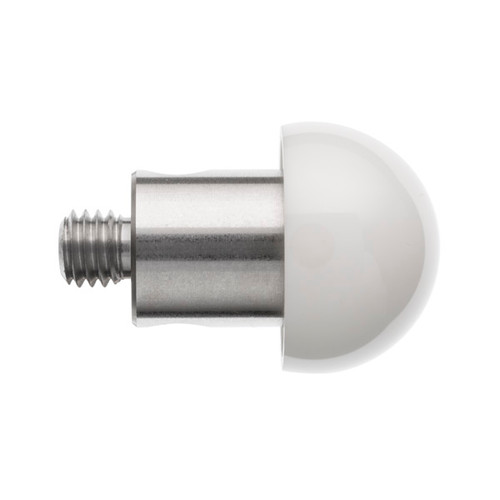

Renishaw M5 Stylus, M5 Ø30.0 mm Ceramic Hemispherical Stylus, SS Stem, L 24.5 mm [A-5003-5277]

Product Description

Renishaw M5 Stylus, M5 Ø30.0 mm Ceramic Hemispherical Stylus, SS Stem, L 24.5 mm [A-5003-5277]

Product Details

This hemispherical stylus is designed for precision probing applications on coordinate measuring machines (CMMs), especially where high wear resistance and stable, repeatable contact performance are required. The Ø30.0 mm ceramic ball offers excellent hardness, low wear characteristics, and strong dimensional stability, making it suitable for demanding inspection tasks and long-term use.

The stylus is mounted on a stainless steel (SS) stem, providing high rigidity, durability, and reliable structural performance to support consistent measurement accuracy. Its 24.5 mm length allows stable probing in compact configurations while maintaining precise alignment within M5 stylus systems.

This component is well suited for metrology applications requiring durable, large-diameter probing elements and consistent contact behavior.

Specifications

Thread Type: M5

Component Type: Hemispherical Stylus

Ball Material: Ceramic

Ball Diameter: Ø30.0 mm

Stem Material: Stainless Steel

Overall Length (L): 24.5 mm

Part number: A-5003-5277
