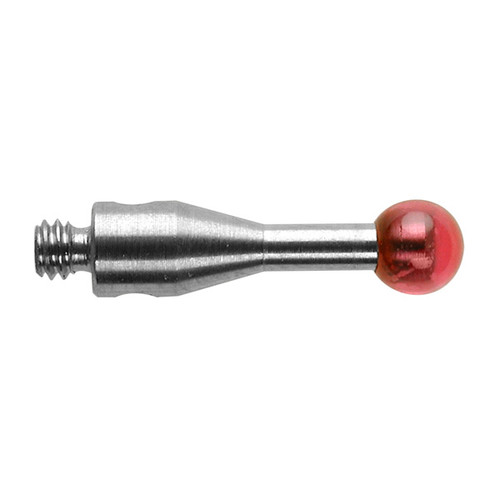

Renishaw M2 Stylus, M2 Ø3.0 mm Ruby Ball, SS Stem, L 10, EWL 7.0 [A-5000-3604]

Product Description

Renishaw M2 Stylus, M2 Ø3.0 mm Ruby Ball, SS Stem, L 10, EWL 7.0 [A-5000-3604]

This Renishaw M2 ruby ball stylus is engineered for precision measurement applications where accuracy, repeatability, and durability are critical. Featuring a Ø3.0 mm ruby ball paired with a stainless steel stem, it delivers dependable probing performance across a wide range of inspection environments.

Key Specifications

• Thread Type: M2

• Ball Diameter: Ø3.0 mm

• Overall Length (L): 10 mm

• Stem Diameter (SD): 1.5 mm

• Effective Working Length (EWL): 7.0 mm

• Ball Material: Ruby

• Stem Material: Stainless Steel

Ruby Ball Material

Ruby is the industry-standard stylus ball material and the optimal choice for most measurement applications due to its exceptional hardness, wear resistance, and dimensional stability. Only a limited number of applications require alternative materials.
For heavy-duty scanning applications on aluminum or cast iron, silicon nitride and zirconia balls are preferred respectively.

Stainless Steel Stem Material

Stainless steel stem styli are widely used, especially for styli with ball diameters of 2 mm or greater and lengths up to 30 mm. For longer applications, ceramic stems provide crash protection by shattering upon collision, helping to protect the probe.
For short-stem applications, tungsten carbide is preferred for maximizing stiffness, while carbon fiber is ideal for specialized applications in harsh machine tool environments.

Part Number: A-5000-3604
