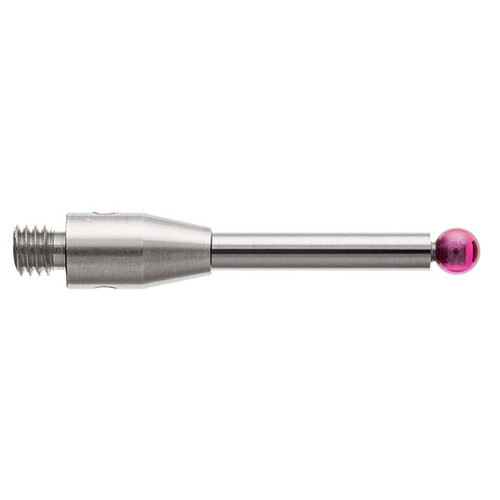

Renishaw M3 Stylus, M3 Ø2.5 mm Ruby Ball Stylus, TC Stem, L 20.2, EWL 12.5 [A-5003-0054]

Product Description

Renishaw M3 Stylus, M3 Ø2.5 mm Ruby Ball Stylus, TC Stem, L 20.2, EWL 12.5 [A-5003-0054]

Product Details

This precision ball stylus is designed for high-accuracy probing applications on coordinate measuring machines (CMMs). The Ø2.5 mm ruby ball provides excellent hardness and wear resistance, ensuring reliable contact and consistent measurement performance when inspecting small to medium-sized features.

The stylus is mounted on a tungsten carbide (TC) stem, offering exceptional rigidity and durability while minimizing deflection during probing. With an overall length of 20.2 mm and an effective working length (EWL) of 12.5 mm, the stylus provides a balanced configuration suitable for accurate measurement of detailed geometries.

This stylus is well suited for precision inspection tasks requiring dependable probing performance and high measurement accuracy.

Specifications

Thread Type: M3

Ball Material: Ruby

Ball Diameter: Ø2.5 mm

Overall Length (L): 20.2 mm

Effective Working Length (EWL): 12.5 mm

Stem Material: Tungsten Carbide (TC)

Part number: A-5003-0054
