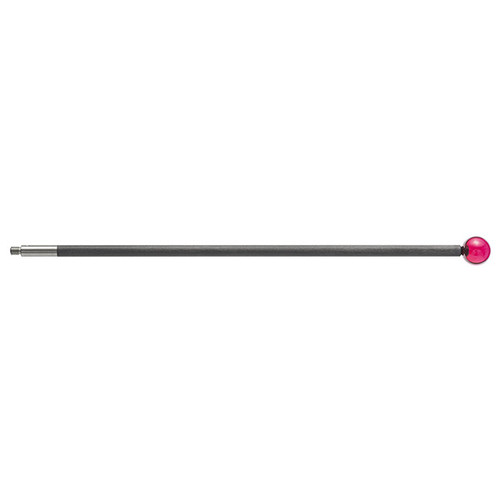

Renishaw M3 Stylus, M3 Ø12.0 mm Ruby Ball Stylus, CF Stem, L 200 mm, EWL 200.0 mm [A-5003-7447]

Product Description

Renishaw M3 Stylus, M3 Ø12.0 mm Ruby Ball Stylus, CF Stem, L 200 mm, EWL 200.0 mm [A-5003-7447]

Product Details

This precision ball stylus is designed for high-accuracy probing applications on coordinate measuring machines (CMMs). The Ø12.0 mm ruby ball provides excellent hardness and wear resistance, ensuring reliable contact and consistent measurement performance when inspecting large features and surfaces.

The stylus is mounted on a carbon fiber (CF) stem, offering a lightweight structure with high stiffness and excellent thermal stability, helping to reduce deflection during probing. With an overall length of 200 mm and an effective working length (EWL) of 200.0 mm, the stylus provides maximum reach for accessing deep or hard-to-reach features.

This stylus is well suited for precision inspection tasks requiring extended reach, stability, and dependable measurement accuracy.

Specifications

Thread Type: M3

Ball Material: Ruby

Ball Diameter: Ø12.0 mm

Overall Length (L): 200 mm

Effective Working Length (EWL): 200.0 mm

Stem Material: Carbon fiber (CF)

Part number: A-5003-7447
